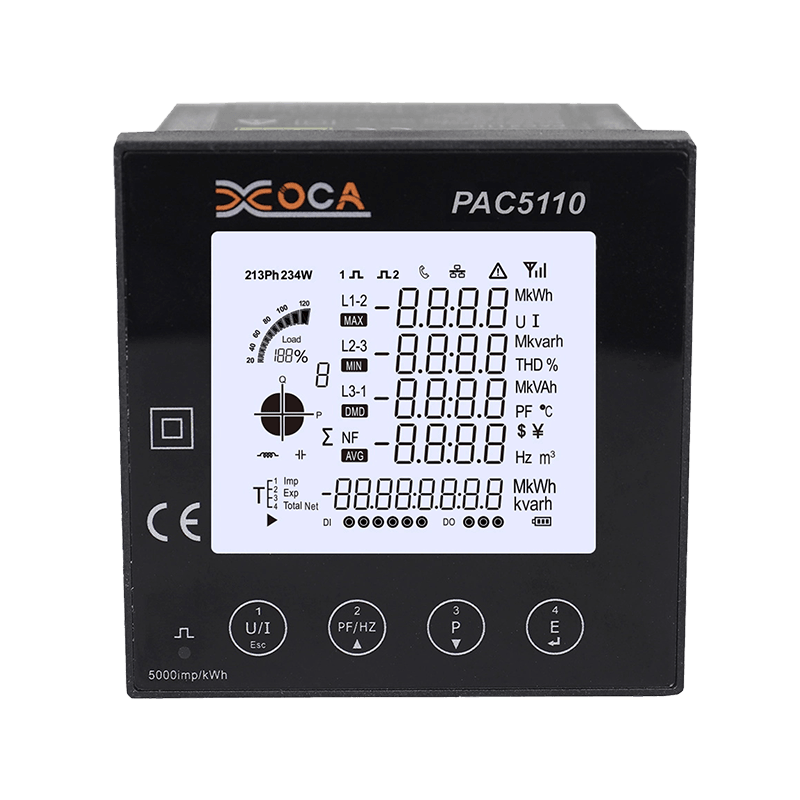

Custom PAC5110 Three Phase Panel RS485 Modbus Digital Electric Energy Meter Power Meter Suppliers, OEM Company

Application

The meter is designed to measure 3p4w/3p3w/1p2w/2p3w AC active energy like residential , utility and industrial application. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .

Prouducts character
1. Embedded panel installation, product panel size 96 * 96mm, adopts touch button design, improves operation of key and reduces key failure rate
2. External current transformer type supports direct access of Roche coil and current transformer of output type like 5A/100mV/100mA, with reverse connection correction function of current transformer
3.Support external voltage transformer access, input voltage minimum 30V
4. Multi-function parameter measurement to provide measurement datas of voltage, current, active power, reactive power, apparent power, power factor, and phase angle,etc.
5. Provide electrical parameters of various types of analysis, such as voltage / current, total harmonic and subharmonics, voltage/current unbalance, voltage peak factor ,current k coefficient etc, supporting up to 63 subharmonics.
6. Provide a variety of statistics and local storage functions, such as two-way power, four-quadrant power, demand, maximum / minimum statistics
7, Provide monthly electricity consumption statistics for the last three months, and daily electricity consumption statistics for the last 31 days
8. Support for multi-channel digital input and output interface
9.Support 2 passive pulse output, 1 RS485 communication with baud rate of 38,400 bps

Product Description

Model NO.	PAC5110
Theory	Electronic Meter
Power Meter Connection	Feed-through Type
Measured Signal	Pulse Peak
Type	Power Meter
Certification	RoHS, ISO, CE
Customized	Customized
Model No.	PAC5110
Related Voltage	3*110/190V or 230/400V AC
Rate Current(Ib)	5A
Communication	Modbus
Connect	AC
Measure Type	3p4w/3p3w/1p2w/2p3w
Pulse Constant	Per Pulse Equal 0.001/0.01/0.1/1 Kwh/Kvarh
Operating Temperature	-25 to +70ºC
Harmonics Emissions	IEC 61000-3-2
IP Degree of Protection	Designed to IP51 Front Display, IP30 Meter Body
Pulse Width	60/100/200 Milliseconds (Configurable), Default Is
Transport Package	Paper Carton+Pallets
Specification	96x96x85.2mm
Trademark	XOCA
Origin	Zhejiang China
HS Code	903033900
Production Capacity	1000000 PCS /Year

Technicial parameters

Model	PAC5000/PAC5010/PAC5110/PAC5100

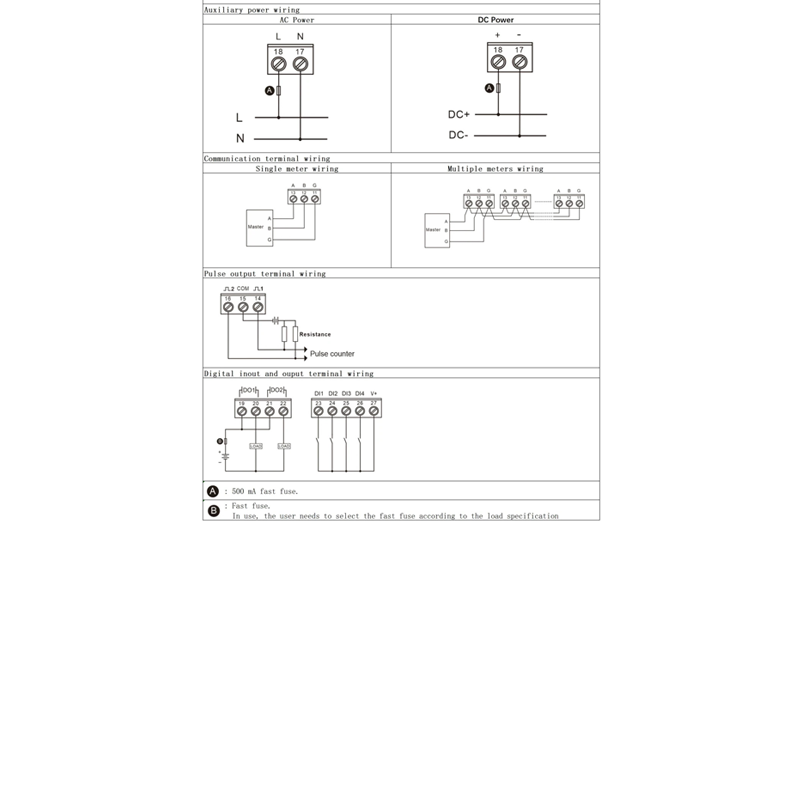

Electrical Characteristics	Supply voltage	80 to 300 V AC or 100 to 420 V DC
	Power consumption	< 4VA/0.5W
	Rate voltage (Un)	3*110/190V or 230/400V AC
	Operational voltage	L-N: 30 to 350V AC; L-L: 30 to 660V AC
	PT1 (Primary)	30 to 600000V
	Impedance of voltage measures circuit	1MΩ
	Overload capacity of voltage	2*Un for 1 second
	Rate current(Ib)	5A
	Maximum current(Imax)	6A
	Operational current	0.1%Ib to Imax
	CT1 (Primary)	1 to 9999 A
	Impedance of current measures circuit	<0.01 ohm
	Overload capacity of current	20*Imax for 0.5 second
	Operational frequency range	45 - 65Hz
	Pulse constant	1000 imp/kWh
	Display	LCD with backlight
	Maximum reading of energy	99999999 MWh/MVarh
	Measure type	Three phase four wire, Three phase three wire, Single phase two wire, Two phase three wire
Measurement accuracy	Voltage, Current	±0.5%
	Active power	±0.5%
	Reactive power	±2.0%
	Apparent power	±0.5%
	Active energy	±0.5%
	Reactive energy	±2.0%
	Power factor	±0.5%
	Frequency	±0.1%
	Harmonic distortion	±2.0%
Environmental Characteristics	Operating Temperature	-25 to +70ºC
	Storage Temperature	-40 to +80ºC
	Humidity	< 90%, non-condensing
	Pollution Degree	2
	Altitude	Up to 2000m
	Vibration	10 Hz to 150Hz, IEC 60068-2-6
	IP Degree of Protection	Designed to IP51 front display, IP30 meter body
Electromagnetic Characteristics	Electrostatic Discharge	±8kV(contact discharge),±15kV(air discharge); Level 4, according IEC 61000-4-2
	Immunity to Radiated Fields	10V/m,80 - 2000MHz; Level 3, according IEC 61000-4-3
	Immunity to Electrical Fast Transients	±4kV; Level 4, according IEC 61000-4-4
	Immunity to Surges	±4kV; Level 4, according IEC 61000-4-5
	Immunity to Conducted Disturbances	10V,0.15 - 80MHz; Level 3, according IEC 61000-4-6
	Immunity to Magnetic Fields	IEC 61000-4-8
	Immunity to Voltage Dips	IEC 61000-4-11
	Radiated Emissions	Class B, according EN55011
	Conducted Emissions	Class B, according EN55011
	Harmonics Emissions	IEC 61000-3-2
Safety	Overvoltage Category	CAT III, according IEC 61010-1
	Measurement Category	CAT III, according IEC 61010-1
	Insulation	AC Voltage Test: 4kV for 1 minute
	Insulation	Impulse Voltage Test: 6kV - 1.2/50µS waveform
	Protective Class	II, according IEC 61010-1
Communications	Interfaces standard and protocols	2-wire RS485, Modbus RTU Optional: Mbus
	Buad rate	1200 to 9600 bps, default is 9600 bps
	Parity bit	None, Even, Odd, default is None
	Stop bit	1 or 2, default is 1
	Response time	<100ms
	Transmission mode	half-duplex
	Transmission distance	Up to 1000m
	Max. Bus loading	64 pcs
Pulse output	Interface type	Open collector optocoupler
	Pulse constant	Per pulse equal 0.001/0.01/0.1/1/10/100/1000 kWh/kvarh (Configurable)
	Pulse width	60/100/200 milliseconds (Configurable), default is 100 milliseconds
	Pulse output type	Import/export/total active energy, Import/export/total reactive energy (Configurable)
	Class	Class A, according IEC 62053-31
	Input voltage	5 to 27 VDC
Digital input (DI)	Number, Type	4, Support dry contact input (built-in power supply: 20 to 24VDC)
	Input Resistance	10kΩ
	Maximum frequency	250Hz
	Response time	2 milliseconds
	Isolation	2.5 kVrms
Digital output(DO)	Number, Type	2 - electromagnetic relay
	Output frequency	10Hz maximum
	Switching current	250 V AC at 3.0 Amps, 100k cycles
	Isolation	2.5 kVrms
