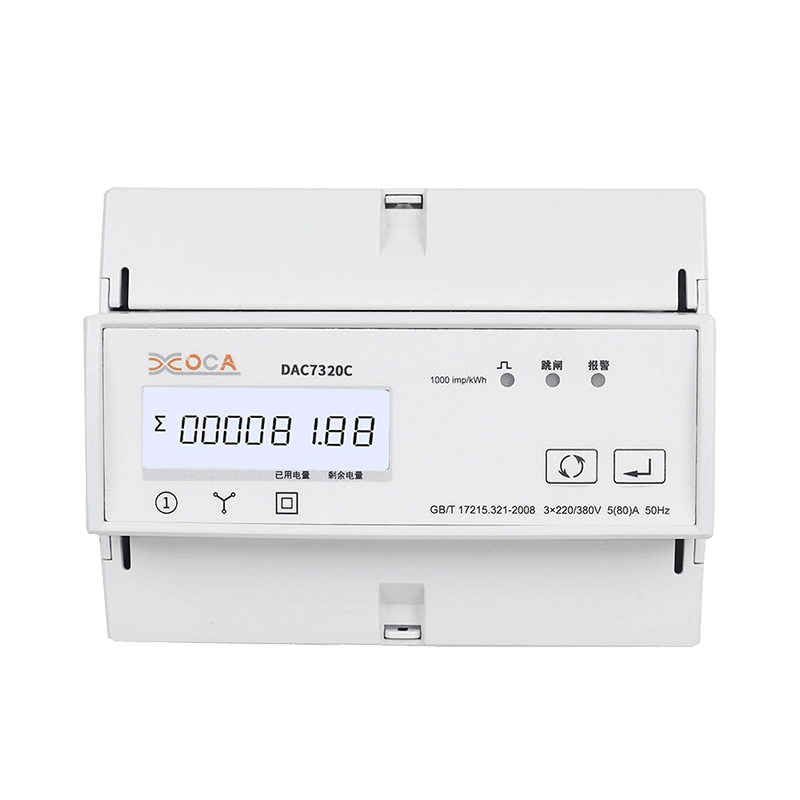

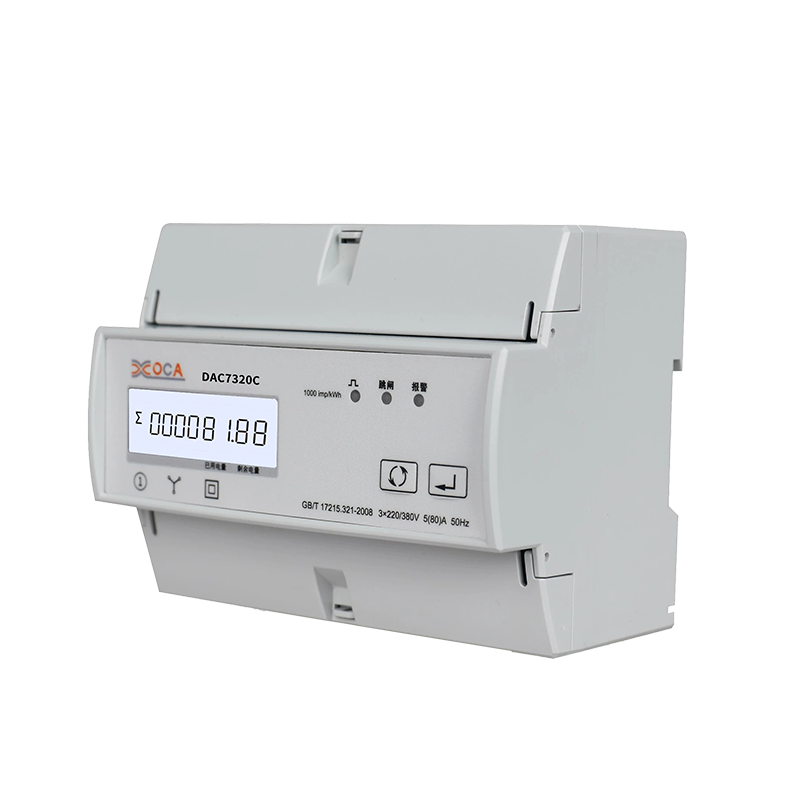

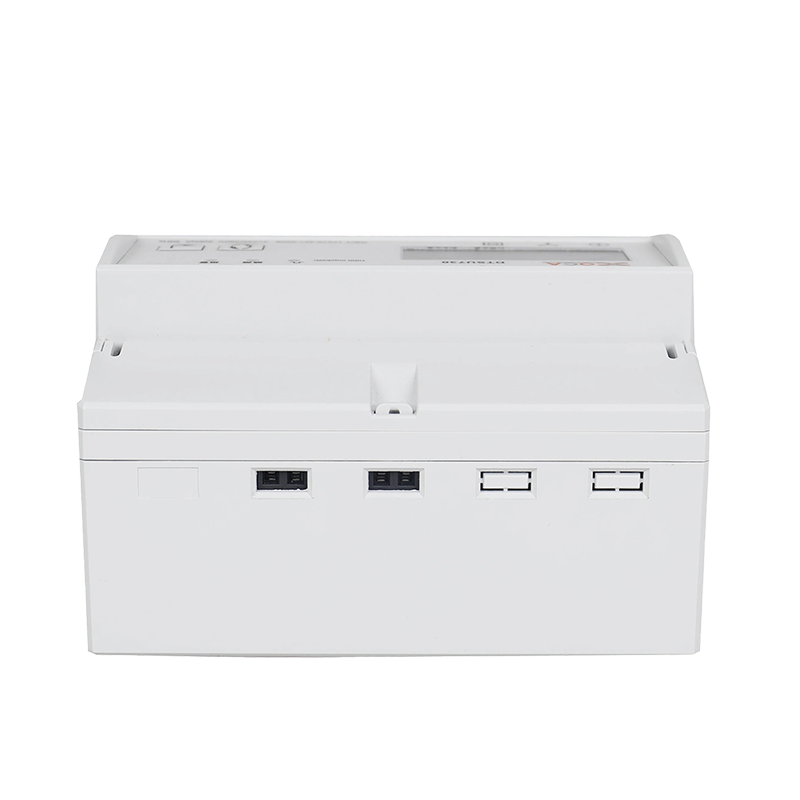

Dac7320c DIN Rail Multi-Function Three Phase WiFi Energy Meter

After-sales Service:Within One Year Replace by New One
Warranty:3years
Display:Digital
Installation:AC
Usage:Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment:Three-phase Four-wire

Contact now Ask a question

Product parameters

Application

The meter is designed to measure three phase four wire AC active energy like residential , utility and industrial application. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .

Prouducts character
1. max current:80A DC.

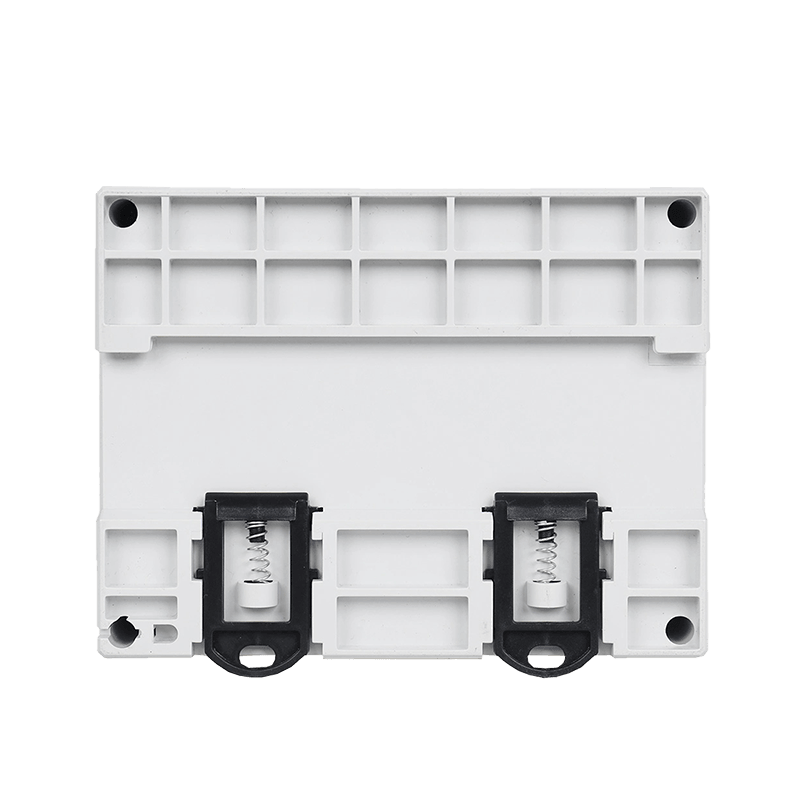

2. Standard 7-modulus width,TH35-7.5 type rail installation
3. Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase Angle, etc
4. Support two-way electric energy metering, provide monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
5. In-built relay, support remote control and prepaid management control,providing latest 50 times opertation records,10 SOE event records
6. Support the power consumption parameter monitoring and alarm function
7. Support WIFI,LoRa,NB-IoT,4G etc. wireless communication way
8. Support 1 pulse output, 1 RS485 communication

Product Description

Model NO.	Dac7320c
Theory	Electronic Meter
Power Meter Connection	Terminal
Measured Signal	Pulse Peak
Type	Power Meter
Certification	RoHS, ISO, CE
Customized	Customized
Model No.	Dac7320c
Related Voltage	3*110/190V or 230/400V AC
Rate Current(Ib)	5A
Communication	WiFi
Connect	AC
Measure Type	3p4w
Pulse Constant	Per Pulse Equal 0.001/0.01/0.1/1 Kwh/Kvarh
Operating Temperature	-25 to +55ºC
Harmonics Emissions	IEC 61000-3-2
IP Degree of Protection	10 Hz to 150Hz, IEC 60068-2-6
Pulse Width	60/100/200 Milliseconds (Configurable)
Other Function-1	with Relay
Transport Package	Paper Carton+Pallets
Specification	9812680 mm
Trademark	XOCA
Origin	Zhejiang China
HS Code	903033900
Production Capacity	1000000 PCS /Year

Technicial parameters

Model	DAC7300C/DAC7301C/DAC7321C/DAC7320C
Electrical Characteristics	Rate voltage (Un)	3*110/190V or 230/400V AC
	Operational voltage	L-N: 85 to 275V AC; L-L: 85 to 480V AC
	Overload capacity of voltage	2*Un for 1 second
	Rate current(Ib)	5A
	Maximum current(Imax)	80A
	Operational current	0.1%Ib to Imax
	Overload capacity of current	30*Imax for 0.01 second
	Operational frequency range	45 - 65Hz
	Power consumption	<2W/10VA
	Pulse constant	1000 imp/kWh
	Display	LCD with backlight
	Maximum reading of energy	999999.99 kWh/kVarh
	Measure type	Three phase four wire
Measurement accuracy	Voltage, Current	±0.5%
	Active power	±1.0% or 0.5%
	Reactive power	±2.0%
	Apparent power	±1.0%
	Active energy	±1.0% or 0.5%
	Reactive energy	±2.0%
	Power factor	±1.0%
	Frequency	±0.2%
Environmental Characteristics	Operating Temperature	-25 to +55ºC
	Storage Temperature	-40 to +80ºC
	Humidity	< 90%, non-condensing
	Pollution Degree	2
	Altitude	Up to 2000m
	Vibration	10 Hz to 150Hz, IEC 60068-2-6
	IP Degree of Protection	Designed to IP51 front display, IP30 meter body
Electromagnetic Characteristics	Electrostatic Discharge	±8kV(contact discharge),±15kV(air discharge); Level 4, according IEC 61000-4-2
	Immunity to Radiated Fields	10V/m,80 - 2000MHz; Level 3, according IEC 61000-4-3
	Immunity to Electrical Fast Transients	±4kV; Level 4, according IEC 61000-4-4
	Immunity to Surges	±4kV; Level 4, according IEC 61000-4-5
	Immunity to Conducted Disturbances	10V,0.15 - 80MHz; Level 3, according IEC 61000-4-6
	Immunity to Magnetic Fields	IEC 61000-4-8
	Immunity to Voltage Dips	IEC 61000-4-11
	Radiated Emissions	Class B, according EN55011
	Conducted Emissions	Class B, according EN55011
	Harmonics Emissions	IEC 61000-3-2
Safety	Overvoltage Category	CAT III, according IEC 61010-1
	Measurement Category	CAT III, according IEC 61010-1
	Insulation	AC Voltage Test: 4kV for 1 minute
	Insulation	Impulse Voltage Test: 6kV - 1.2/50µS waveform
	Protective Class	II, according IEC61010-1
Communications	Interfaces standard and protocols	2-wire RS485, Modbus RTU Optional: Mbus
	Buad rate	1200 to 9600 bps, default is 9600 bps
	Parity bit	None, Even, Odd, default is None
	Stop bit	1 or 2, default is 1
	Response time	<100ms
	Transmission mode	half-duplex
	Transmission distance	Up to 1000m
	Max. Bus loading	32 pcs
Wireless communications	Types that can be supported	WIFI, LoRa, NB-IoT, 4G
Pulse output	Interface type	Open collector optocoupler
	Pulse constant	Per pulse equal 0.001/0.01/0.1/1 kWh/kvarh (Configurable)
	Pulse width	60/100/200 milliseconds (Configurable), default is 100milliseconds
	Pulse output type	Import/export/total active energy, Import/export/total reactive energy (Configurable)
	Class	Class A, according IEC 62053-31
	Input voltage	5 to 27 VDC

Product description

The DIN Rail Multi-Function Three Phase WiFi Energy Meter is a sophisticated energy monitoring device designed for measuring electrical parameters in a three-phase electrical system. It is typically used in industrial and commercial settings to monitor energy consumption and power quality. Here are the product parameters for this device:

Related Voltage: This energy meter is designed to work with two common voltage configurations: 3*110/190V or 230/400V AC. This means it can be used in systems where the phase-to-phase voltage is 110/190V or 230/400V.

Rate Current (Ib): The rate current, or Ib, is 5A. This is the nominal current for which the meter is calibrated and is the current level at which the meter's accuracy is ensured.

Communication: The energy meter is equipped with WiFi communication capabilities, allowing it to transmit data wirelessly to a central monitoring system or other devices.

Connect: The device is intended to be connected to an AC power source, which is common in most electrical systems.

Measure Type: The energy meter measures a three-phase, four-wire (3p4w) electrical system. This means it monitors three live conductors and one neutral conductor.

Pulse Constant: The pulse constant is a configurable parameter that determines how many pulses are generated per unit of energy consumption. It can be set to one of the following options: 0.001, 0.01, 0.1, or 1 KWh/Kvarh. This parameter is often used for interfacing with external data collection systems.

Operating Temperature: The meter can operate in a temperature range from -25°C to +55°C, making it suitable for use in a variety of environmental conditions.

Harmonics Emissions: The device complies with the IEC 61000-3-2 standard, indicating that it meets requirements for controlling harmonics emissions, which is essential for maintaining power quality in electrical systems.

IP Degree of Protection: The device has an Ingress Protection (IP) rating, which is not mentioned in the provided information. IP ratings typically indicate the device's resistance to dust and moisture. An IP rating of, for example, "IP65," would suggest that the device is protected against dust and low-pressure water jets.

Pulse Width: The pulse width is configurable and can be set to one of the following options: 60, 100, or 200 milliseconds. This parameter may be used to customize the pulse output duration for specific applications or data collection systems.

In summary, this DIN Rail Multi-Function Three Phase WiFi Energy Meter is a versatile device designed to accurately monitor electrical parameters in a three-phase electrical system, providing data through WiFi communication. It offers configurable options such as pulse constant and pulse width to suit various monitoring and data collection needs. The device operates within a specified temperature range and complies with harmonics emissions standards. Additionally, the IP degree of protection should be checked for specific environmental requirements.
