What Is a Single Phase Power Meter?

A single phase power meter is an electrical device that measures the current and voltage of an electric circuit. These devices can be used in a variety of different applications. For example, they can be used for measuring the voltage of an electrical system in an office building. These meters are also commonly used for checking the integrity of an electric system and determining whether it is safe to operate.

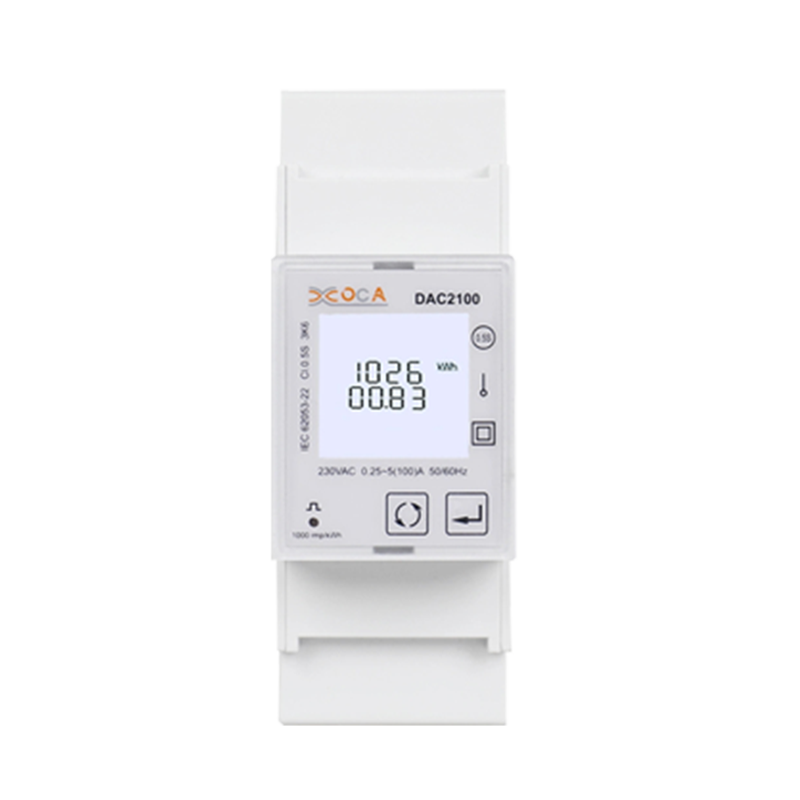

Single Phase Power Meters

There are several types of power meters that can be used for a wide range of applications. These include open-jaw, non-contact, and data-logging instruments. Many of these devices feature an LCD screen for displaying measurement results. Some also feature wireless communication capabilities for transmitting data between the meter and a computer.

The first step in choosing the right electric meter is to decide what type of power supply it will be used for. This will help you determine how much power you need and how the device will be configured to measure it.

Typically, a residential house with gas central heating will use a single-phase electricity supply. However, if you have a large amount of equipment that requires more power than a single-phase supply can provide, then you may need to switch to a three-phase electric meter.

Another difference between a single-phase power meter and a three-phase electric meter is the number of wires required to transfer power. A single-phase connection uses only two conductor wires while a three-phase one uses three live conductor wires as well as an additional neutral wire.

Some of the more advanced single-phase power meter products are designed to record and store measurement data to memory. This can be useful for analyzing power consumption patterns over time or for storing data to allow future comparisons.

This can be an important tool for determining how energy is being consumed and allowing users to make better decisions about their power usage. This can also be an effective way to save money on their monthly electricity bills.

In addition to measuring the voltage and current of an electric circuit, a single-phase power meter can also detect ground potential, capacitance, and inductance. These features are helpful for ensuring that a circuit is safe and will not damage your property.

These devices are designed to be easy to use and can be used for a wide variety of purposes. They are also designed to be durable and reliable. Some of these devices are even waterproof.

The most common types of single-phase power meters are designed to meter the voltage and current of an electrical circuit. These devices are usually found in homes or other buildings where the power is coming from a single-phase connection.

They can also be used in commercial and industrial environments. These are the most popular types of power meters and can be used for a wide range of purposes.

The most basic types of single-phase power meters are based on the RL78/I1B microcontroller, which is designed to realize accurate metrology by using a 24-bit Delta-Sigma A/D converter with a phase adjustment circuit and high-pass filter functions. They are also equipped with LCD controller/driver functions and a high-speed on-chip oscillator with a clock frequency correction function.
